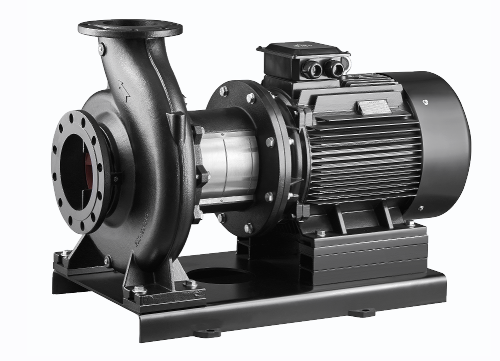

End Suction Pump vertical inline pump, with compact structure, axial inlet and radial outlet
- Model
- PA
Item specifics
- The liquid temperature
- -15ºCto +70ºC
- hot water type
- +70ºC to +115ºC
- Flow range
- 4m3/h~1500m3/h
- Head range
- 2.30m~146m
- The environment temperature
- +40ºC
Review
Description
Product features:End Suction Pump
1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .
2. The liquid temperature: -15ºCto +70ºC hot water type +70ºC to +115ºC.
3. Flow range 0.4m3/h~28m3/h, head range 6m~234m.
4. Model range PA32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300
5. Material CI, SS304 available.
6. The environment temperature: +40ºC.
7. The minimum entrance pressure curve: NPSH +0.5m.
8. Head of safety margin of 0.5m.
Data sheet: 50Hz
Model | PA32 | PA40 | PA50 | PA65 | PA80 | PA100 |
flow range. m3/h | 3.1~32.4 | 6.3~43.2 | 13.3~108 | 21.6~156 | 37.2~251.9 | 62.3~354 |
Max.head. m | 89.3 | 155 | 151.5 | 143.5 | 146 | 95 |
Model | PA125 | PA150 | PA200 | PA250 | PA300 | |
flow range. m3/h | 93.1~432 | 158.3~578.9 | 229.5~829.4 | 382.2~1175 | 549.2~1404 | |
Max.head. m |
51.7 |
98 | 88.5 | 87.5 |
49.5 |
|
