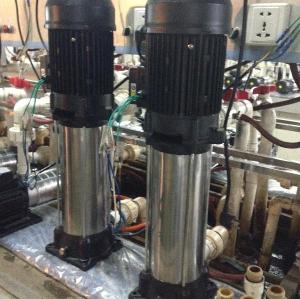

plastic impeller Vertical Multistage Centrifugal Pump
- Model
- CVE
Item specifics
- The liquid temperature
- 0ºCto +50ºC
- Flow range
- 0.6m3/h~20m3/h
- Head range
- 15m~175m
- The environment temperature
- ≤50ºC
Review
Description
Product features:
1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .
2. The liquid temperature: +5ºC ~ +70ºC.
3. The environment temperature: +40ºC.
4. PPO plastic impeller and diffuser.
5. The minimum entrance pressure curve: NPSH +0.5m.
6. Head of safety margin of 0.5m.
Data sheet:
Model | CVM1 | CVM2 | CVM4 |
rated flow. m3/h | 1 | 2 | 4 |
Max.head. m | 91 | 117 | 108 |
Model | CVM6 | CVM8 | CVM12 |
rated flow. m3/h | 6 | 8 | 12 |
Max.head. m | 108 | 54 | 85 |
Applications:
