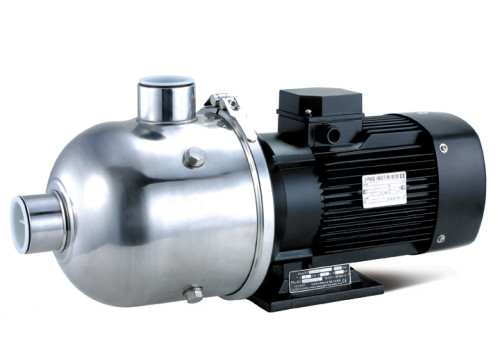

Light Horizontal Multistage Centrifugal Water Pump
- Model
- CHS
Item specifics
- Material
- CI, SS304, SS316L.
- The environment temperature:
- +40ºC
- The minimum entrance pressure curve:
- NPSH +0.5m
Review
Description
Light Horizontal Multistage Centrifugal Water Pump
1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .
2. The liquid temperature: -15ºCto +70ºC hot water type +70ºC to +115ºC.
3. The environment temperature: +40ºC.
4. The minimum entrance pressure curve: NPSH +0.5m.
5. Head of safety margin of 0.5m.
Data sheet:
Model | CHS2 | CHS4 | CHS8 | CHS12 | CHS16 | CHS20 |
rated flow. m3/h | 2 | 4 | 8 | 12 | 16 | 20 |
Max.head. m | 53 | 37.5 | 50.5 | 60 | 40 | 39.5 |
