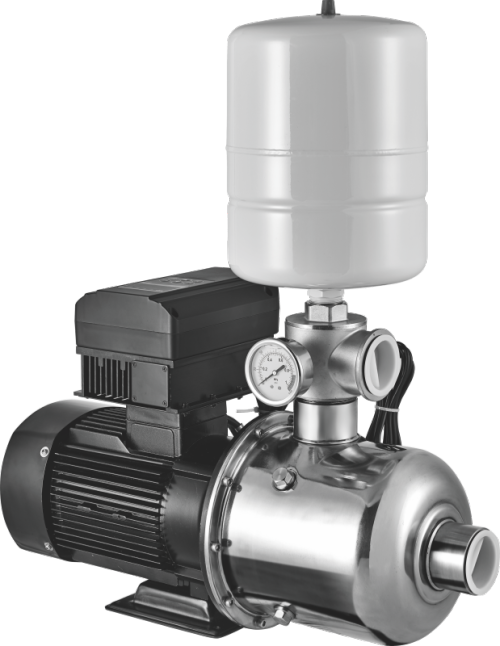

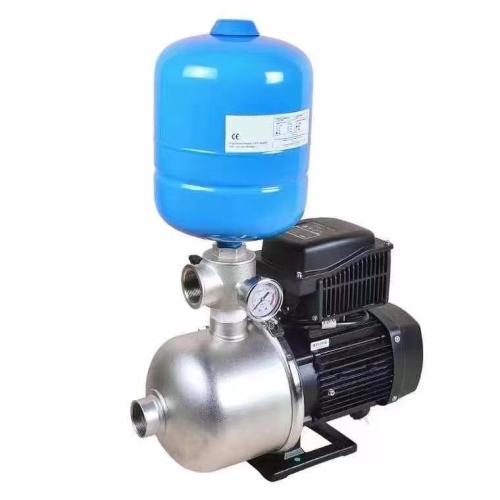

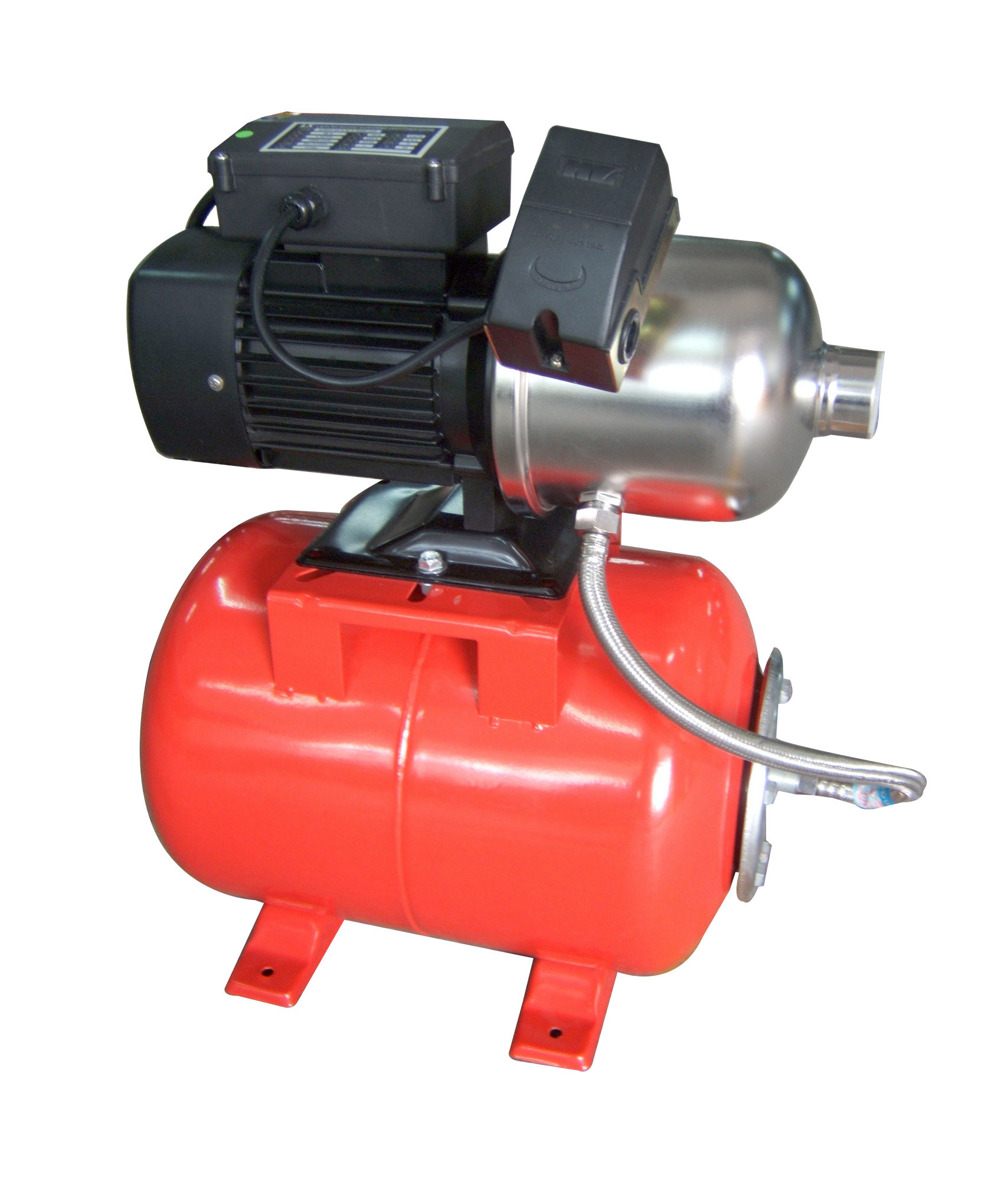

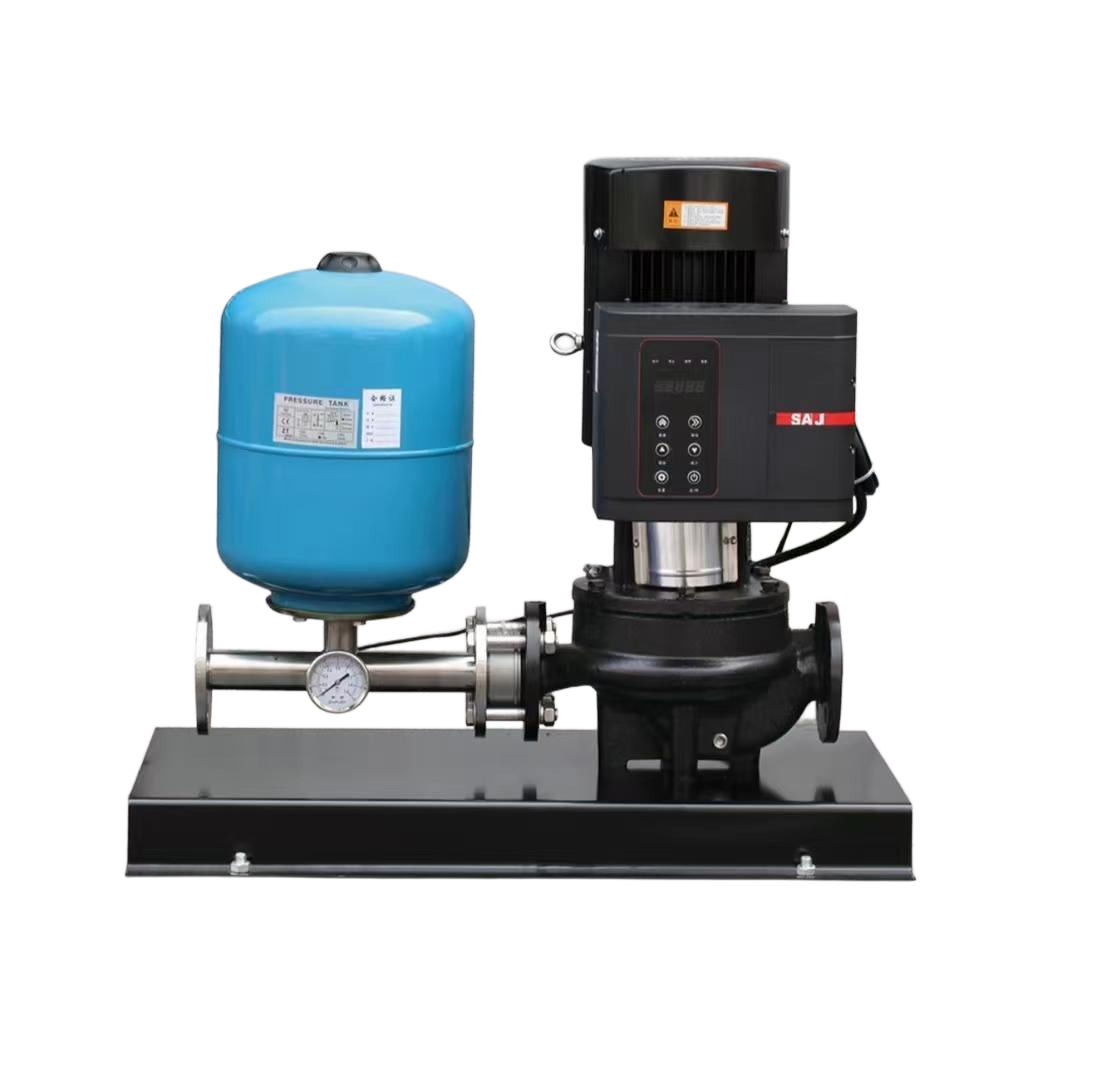

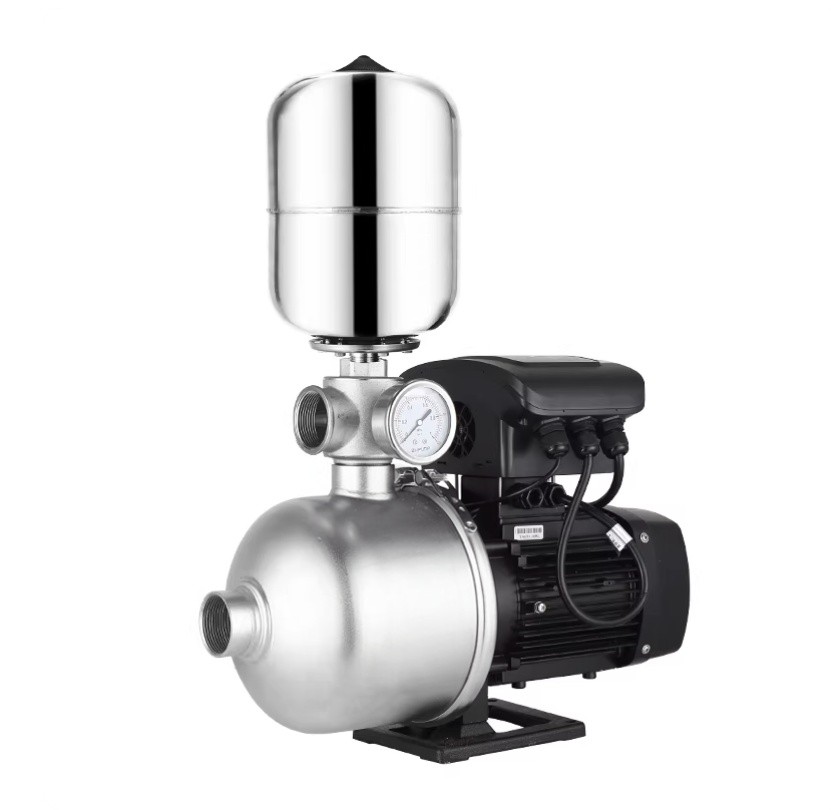

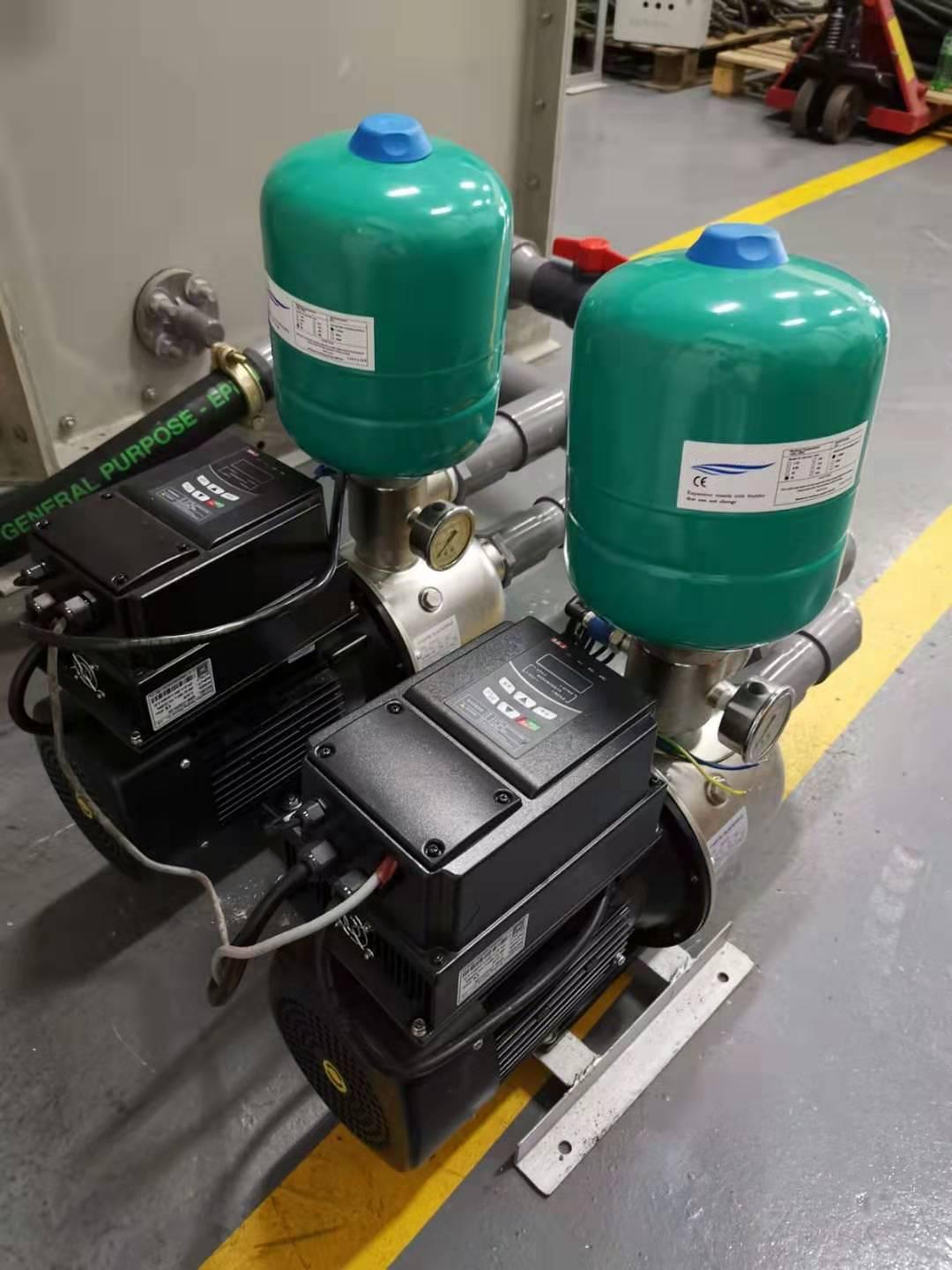

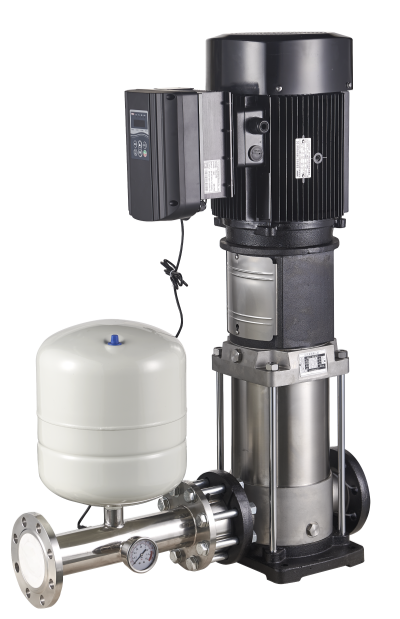

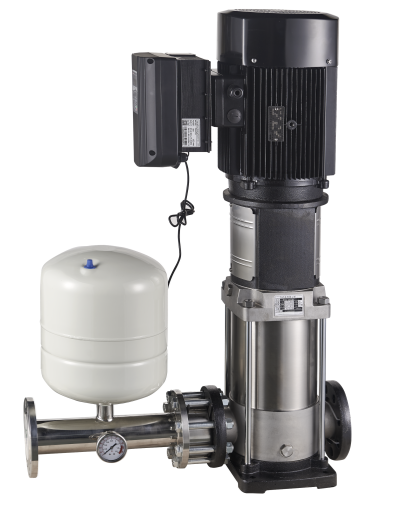

Fully Automatic Stainless Steel Single-Pump Booster System
Review
Description
Description:
Rondos AS pumps are vertical multistage centrifugal units equipped with radial flow impellers, engineered specifically for high-pressure applications.
Their inline design streamlines piping installation while cutting floor space requirements significantly—offering greater space efficiency than alternative pump configurations. All wetted components are constructed from corrosion-resistant stainless steel, ensuring long-term durability in fluid-handling scenarios.
These inline pumps are powered by totally enclosed fan-cooled (TEFC) motors, available in single-phase or three-phase variants: all single-phase motors include built-in thermal protection, while three-phase models come with either standard-efficiency or premium-efficiency motor options.

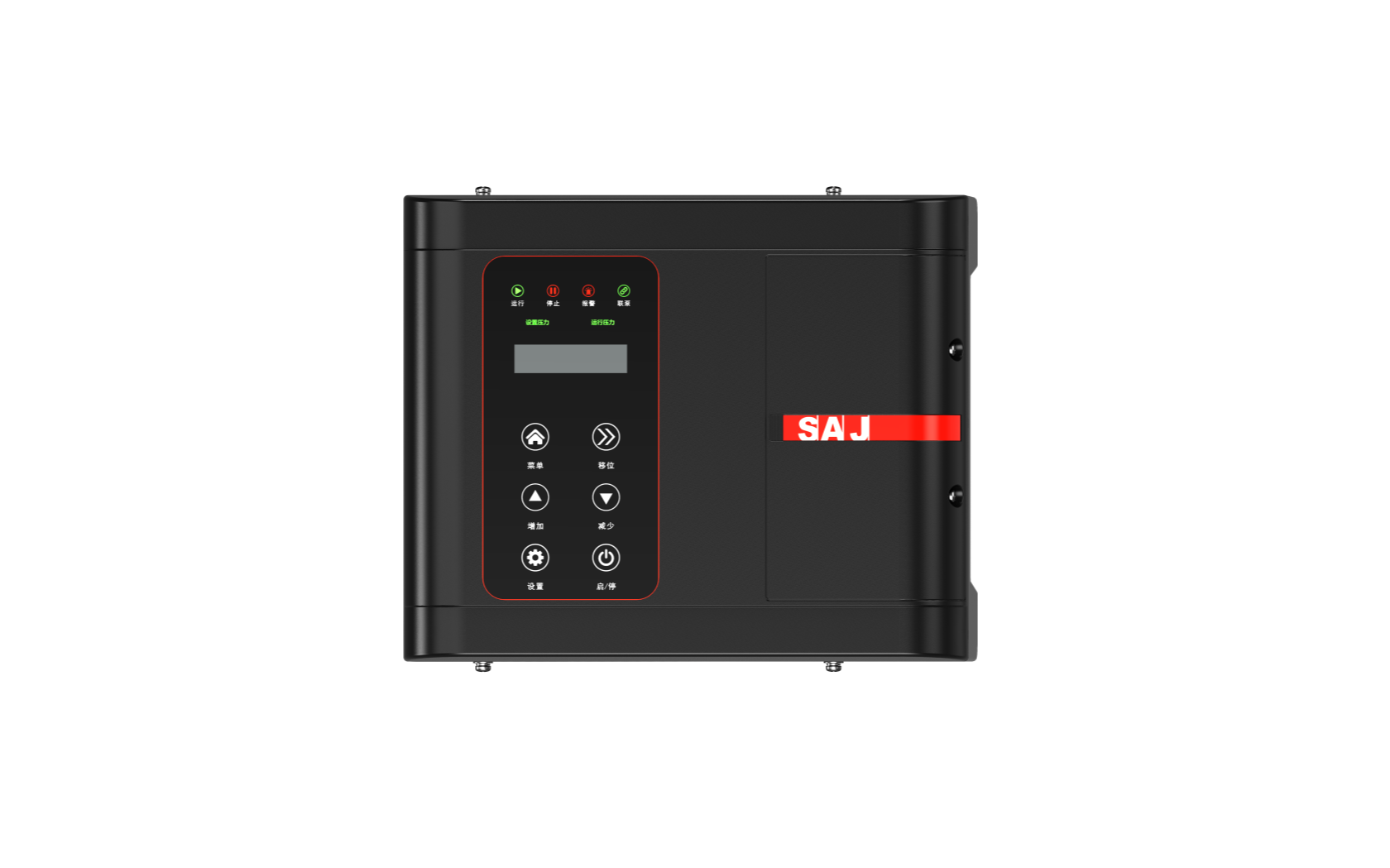

The integrated control system (featuring PLC, microcontroller, or VFD) enables constant-pressure operation, energy savings, and reliable fail-safe automatic functionality.
Main Components:
| No. | Name | Quantity | Remark |
| 1 | Vertical Multistage Centrifugal Pump | 1 | SS304 / SS316 / Dual2205 |
| 2 | PID Controller | 1 | |
| 3 | Pressure Sensor | 1 | 3~20mA |
4 | Inlet & Outlet Pipe | 1 | SS304 |
5 | Valve | 1 | Ball Valve / Butterfly Valve |
6 | Check Valve | 1 | SS304 |
7 | Pressure Tank | 1 | SS400 |
Specification:

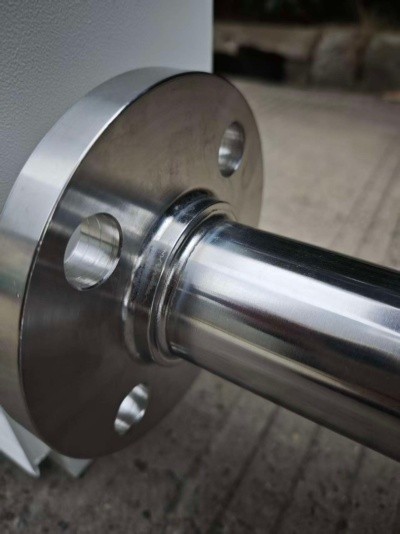

| Connection type | Internal-thread connection,Flange |
| Drive concept | Electric actuator |
| Max. flow rate | 498 m3/h |
Min. flow rate | 0.4 m3/h |
Max. head | 380 m |
Min. head | 7 m |
Mains frequency | 50 Hz |
Mains voltage | 220V, 380V |
Casing material | Stainless Steel |
Nominal pressure | PN 16 |
Max. allowed working pressure | 16 bar |
Suction behaviour | Non-self-priming |
Maximum allowable fluid temperature | 70 °C |
| Minimum allowable fluid temperature | -15 °C |
Features:
☑ Sophisticated water pressure throughout the building round the clock and ensures Efficient & Constant Water Pressure Management
☑ No manual interference to operate the pumping system
☑ Low noise and vibration level
☑ Reliable automation
☑ Stainless steel impeller and casings
☑ Thermally protected single phase motors
☑ Different materials of construction
Application:
☑ Pressure boosting system for multifamily residences, hotels, offices, healthcare hospitals, villas, theatres, auditorium, industries etc.
☑ Industrial washing and cleaning system.
