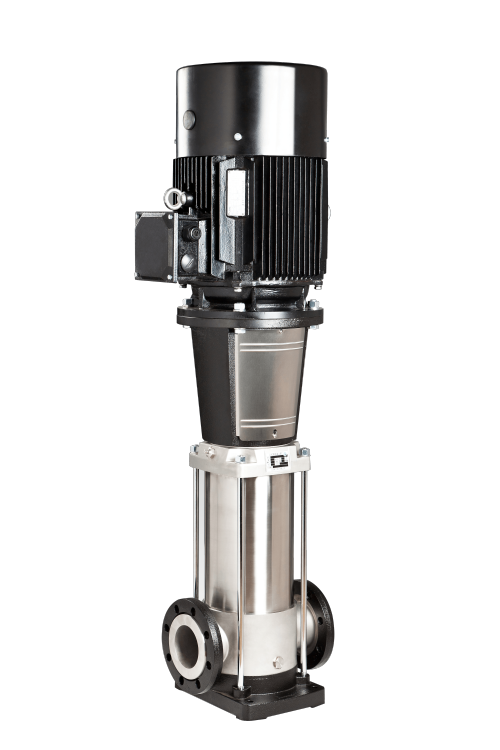

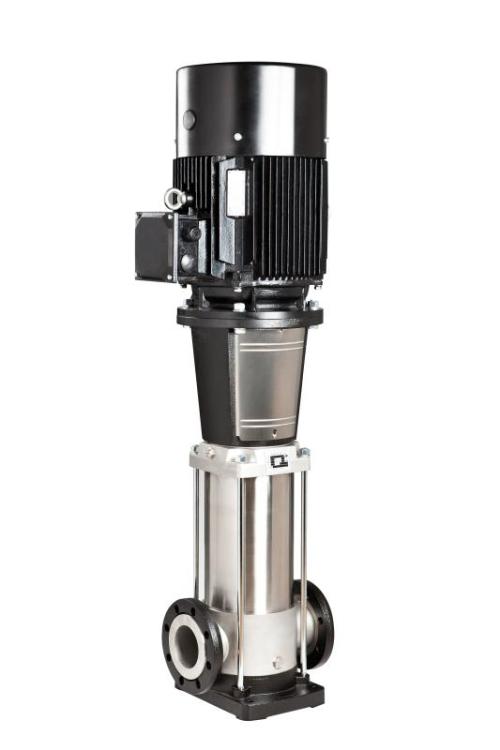

Stainless Steel Vertical Multistage Centrifugal Pump

Stainless Steel Vertical Multistage Centrifugal Pump

Model: SDL,SDLT

Item specifics

Liquid temperature: -15ºC ~ +115ºC

Flow range: 0.4m³/h~240m³/h

Head range: 3.5~305m

Ambient temperature: up to +40ºC

Material: SS304, SS316L, CI

Frequency: 50/60Hz

Review

Description

Operation conditions:

1. The liquid temperature: for normal type -15ºC to +70ºC; for hot water type +70ºC to +115ºC.

^{2. Flow range 0.4m³/h~240m³/h}

^{3. Head range 3.5m~305m.}

4. The ambient temperature: up to +40ºC.

^{5. The minimum entrance pressure curve: NPSH +0.5m.}

^{6. Head of safety margin of 0.5m.}

Product features:

^{1. Compact structure, light weight, small size with outstanding performance and beautiful appearance.}

^{2. Adopt advanced manufacturing technology of stamping and welding , ensuring stable quality, high efficiency and energy saving.}

^{3. Made of stainless steel material, anti-rust and anti-corrosive, long service life.}

^{4. Integrated design of engine and pump, low vibration and noise.}

^{5. Seriation design, high interchangeability of parts, reduce the inventory of spare parts for user maintenance.}

^{6. Easy to install and adjustable with diverse methods for the import and export connection.}

Data sheet:

SDL series performance data
Model	SDL1	SDL2	SDL3	SDL4	SDL5	SDL8
rated flow. m³/h	1	2	3	4	5	8
Max.head. m	214	232	218	211	232	208

Model	SDL10	SDL12	SDL15	SDL16	SDL20	SDL32
rated flow. m³/h	10	12	15	16	20	32
Max.head. m	222	217	227	222	234	292

Model	SDL45	SDL64	SDL90	SDL120	SDL150	SDL200
rated flow. m3/h	45	64	90	120	150	200
Max.head. m	305	215	168	162.5	157	157.5

Model Selection:

^{● The pipeline structure of SDL(T) can ensure that the pump can be directly installed in the pipeline system which pipe diameters are the same and the outlet and inlet at the same level. This design of structure makes the connection from Pump to pipe more compact.}

^{● SDL(T) is a kind of multi-functional pump, can transfer not only clean water but also various industrial liquid medium, suitable for different temperature, flow rate and pressure range.}

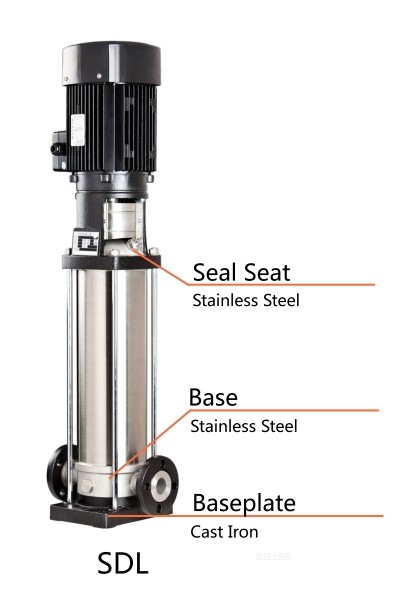

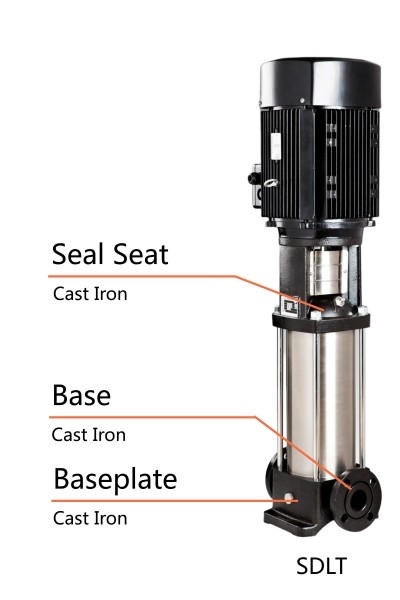

^{● SDLT suitable for non-corrosive liquids, SDL is suitable for mild corrosive liquid.}

Typical Application:

^{● Domestic water supply: water filtering and conveying, water partition, net pressure boosting for high-rise buildings, hotels.}

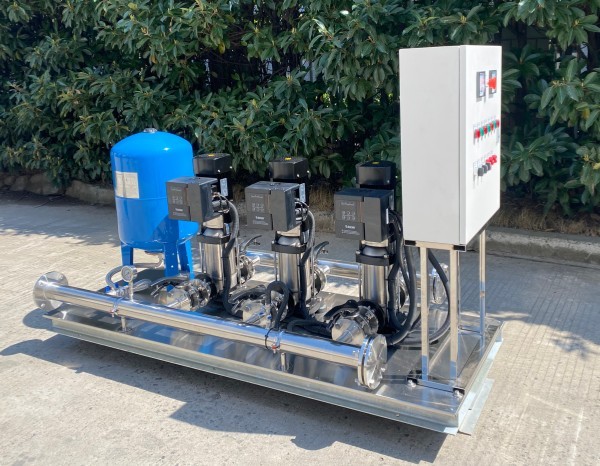

^{● Industrial boosting: process water system, cleaning system, high-pressure washing system, fire-fighting system, car cleaning.}

^{● Industrial liquid transportation: cooling and air conditioning system, boiler feed water system and temperature system, machine matching.}

^{● Delivery: oil and alcohol, acid and alkali, ethylene glycol and coolant.}

^{● Water treatment: UF (Ultrafiltration) and RO (Reverse Osmosis) systems, distillation systems, separator, the swimming pool.}

^{● Agricultural irrigation: Region irrigation, sprinkler irrigation, drip irrigation.}

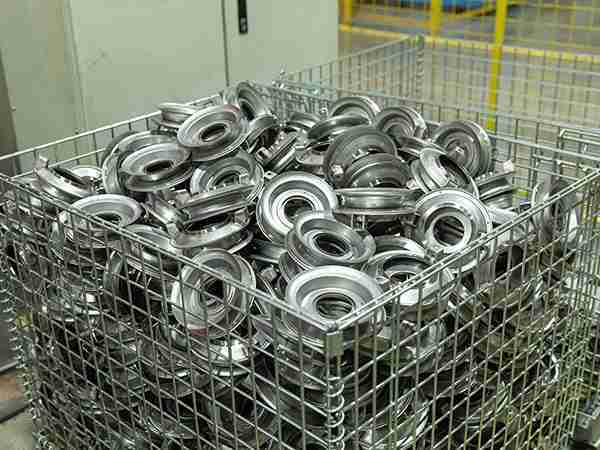

Stainless steel stamping laser welding impeller

Rondos SDL Vertical Multistage Centrifugal Pump
