New Type Stainless Steel Vertical Multistage Centrifugal Pump

New Type Stainless Steel Vertical Multistage Centrifugal Pump

Model: AS, AC

Item specifics

Liquid temperature: -15ºC ~ +120ºC

Flow range: 0.4m³/h~498m³/h

Head range: 7~380m

Ambient temperature: up to +40ºC

Material: CI, SS304, SS316L, Duplex 2205

Frequency: 50/60Hz

Review

Description

Working condition:

1. The liquid shall be low-viscosity, clean, non-flammable and non-explosive, with no solid particles or fibers contained.

2. The liquid temperature: for normal type -15ºC to +70ºC; for hot water type -15ºC to +120ºC.

^{3. Flow range 0.4m³/h~498m³/h.}

^{4. Head range 7m~380m.}

^{5. The ambient temperature: up to +40ºC.}

^{6. The minimum entrance pressure curve: NPSH +0.5m.}

^{7. Head of safety margin of 0.5m.}

^{8. Altitude: up to 1000m.}

Motor:

1. Squirrel cage-type IEC motor with totally enclosed air-cooled (TEAC) construction, specifically designed for continuous duty (S1) operation.

^{2. Protection Class: IP55.}

^{3. Insulation Class: F.}

^{4. Standard Frequency:}

^{3 × 220-240/380-415V}

^{1 × 220-240V}

^{5. Single-phase available power range: 0.37 to 2.2 Kw}

Product features:

1. Material: Cast Iron, Stainless Steel (AISI304, AISI316), Duplex Stainless Steel (2205) all available.

^{2. Connection Methods: Flange, Threaded or Clamp Connection.}

^{3. Color: standard color is black, electrophoretic paint.}

^{4. Cartridge mechanical seal, standard type is graphite/carbide tungsten, viton.}

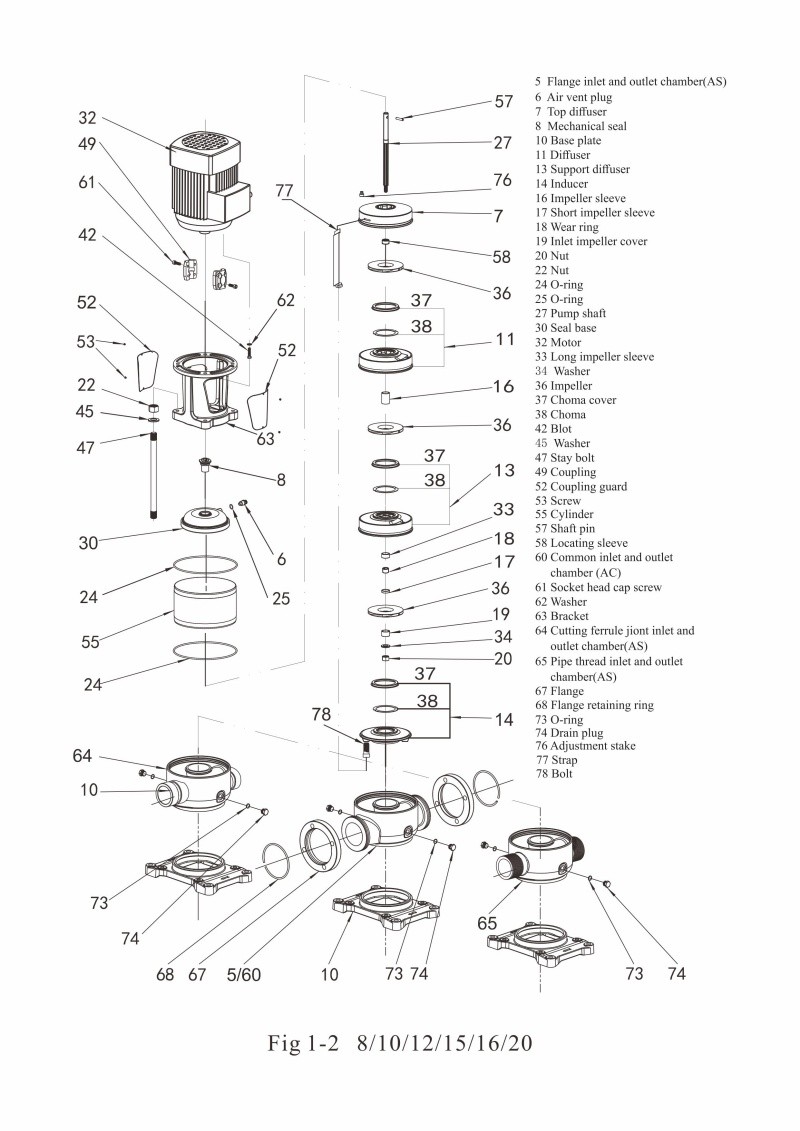

Product Structure:

50Hz Data sheet:

AS series performance data
Model	AS1	AS2	AS3	AS4	AS5	AS8	AS10
rated flow. m³/h	1	2	3	4	5	8	10
Max.head. m	362	323	289	330	330	329	335

Model	AS12	AS15	AS16	AS20	AS32	AS45	AS64
rated flow. m³/h	12	15	16	20	32	45	64
Max.head. m	320	321	290	249	366	364	301

Model	AS90	AS100	AS130	AS160	AS190	AS220	AS260
rated flow. m3/h	90	100	130	160	190	220	260
Max.head. m	306	294	331	272	331	333	274

Typical Application:

● Domestic water supply: water plant filtration & conveyance, zoned water distribution for water plants, main pipeline pressurization, high-rise buildings, pressurization for hotels & guesthouses.

^{● Industrial pressurization: process water system, cleaning system, high-pressure flushing system, fire-fighting system, car wash systems, automotive cleaning equipment.}

^{● Industrial fluid conveyance: cooling and air conditioning system, boiler feed water, condensation systems & cooling towers and machine tool lubrication jackets.}

^{● Fluid transfer: oil and alcohol, acid and alkali, ethylene glycol and coolant.}

^{● Water treatment: UF (Ultrafiltration) and RO (Reverse Osmosis) systems, distillation systems, separators, swimming pools.}

^{● Agricultural irrigation: Region irrigation, sprinkler irrigation, drip irrigation, greenhouses.}
