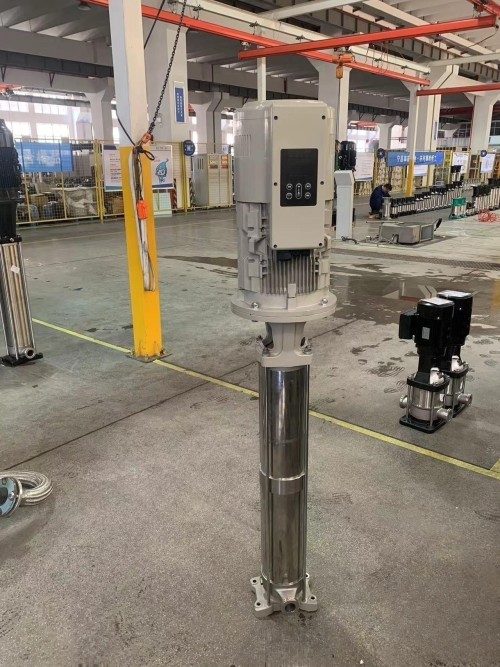

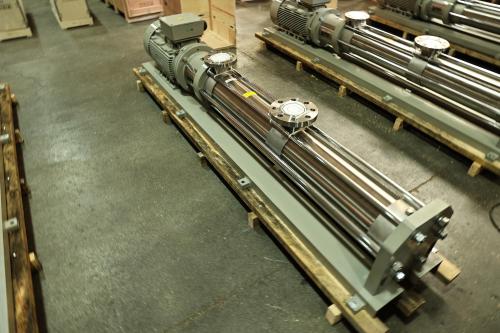

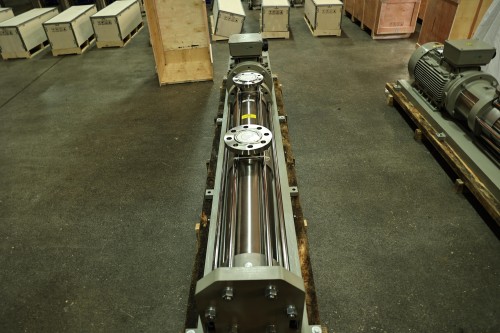

HSP/MHP Stainless Steel High Pressure Vertical/Horizontal Multistage Pump
HSP/MHP Stainless Steel High Pressure Vertical/Horizontal Multistage Pump
HSP/MHP Stainless Steel High Pressure Vertical/Horizontal Multistage Pump
HSP/MHP Stainless Steel High Pressure Vertical/Horizontal Multistage Pump
HSP/MHP Stainless Steel High Pressure Vertical/Horizontal Multistage Pump
HSP/MHP Stainless Steel High Pressure Vertical/Horizontal Multistage Pump
Model
HSP

Item specifics

Material
SS304, SS316L.
The environment temperature:
+40ºC
The minimum entrance pressure curve:
NPSH +0.5m

Review

Description

Product features: HSP/MHP Stainless Steel High Pressure Vertical/Horizontal Multistage Pump
1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .
2. The liquid temperature: -15ºCto +70ºC
3. Flow range 1.0m3/h~38.5m3/h, head range 207m~835m.
4. Model range HSP2,3,4,5,8,10,12,15,16,20,25,30, MHP2,3,4,5,8,10,12,15,16,20,25,30,50,60
5. Material SS304, SS316L. Duplex 2205
6. The environment temperature: +40ºC.
7. The minimum entrance pressure curve: NPSH +0.5m.
8. Head of safety margin of 0.5m.
Data sheet:

Model

HSP2
HSP3
HSP4
HSP5
HSP8
HSP10

rated flow. m3/h

2

3

4

5

8

10

Max.head. m

790

705

700

645

705

630

Model

HSP12
HSP15
HSP16
HSP20
HSP25
HSP30

rated flow. m3/h

12

15

16

20

25

30

Max.head. m

700

700

700

680

690

640

Model

MHP2

MHP3

MHP4

MHP5

MHP8
MHP10

MHP12

rated flow. m3/h

2

3

4

5

8

10

12

Max.head. m

1000

1005

990

1020

880

800

1030

Model

MHP15

MHP16

MHP20

MHP25

MHP30

MHP50

MHP60

rated flow. m3/h

15

16

20

25

30

50

60

Max.head. m

1000

980

990

690

640

950

700
