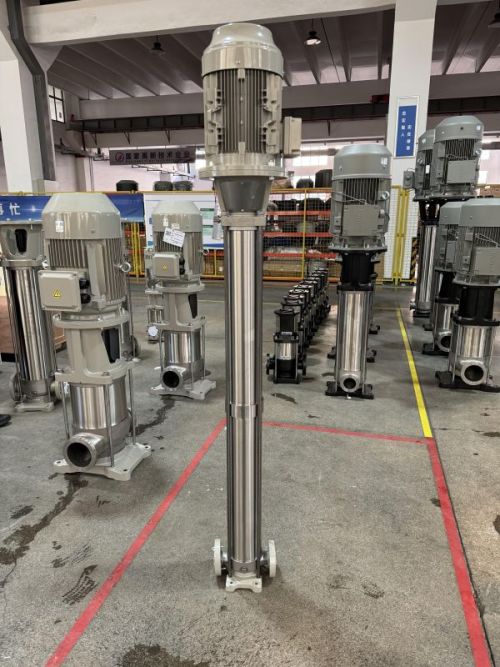

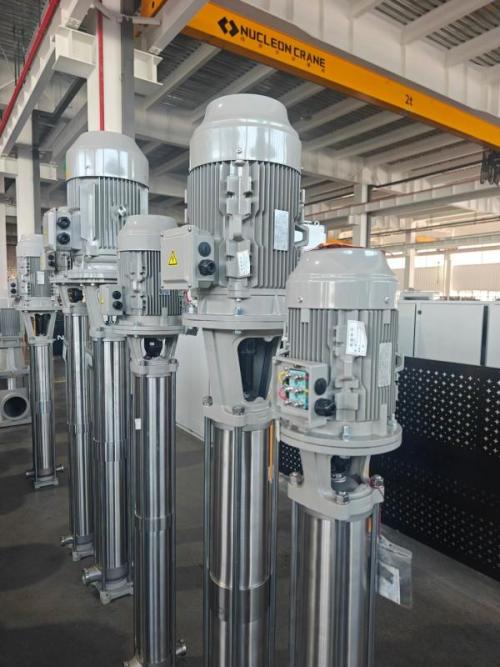

ASB/ASBM Stainless Steel High Pressure Vertical Multistage Pump
- Model
- ASB/ASBM
Item specifics
- Material
- SS304, SS316L, Duplex 2205
- The environment temperature:
- ≤40ºC
- The liquid temperature
- -15ºC to +70ºC
- Hot water type
- -15ºC to +120ºC
- The minimum entrance pressure curve
- NPSH +0.5m
- Motor
- Permanent magnet variable frequency, speed 3500rpm
- Flow
- 0.5~498m3/h
- Head
- 100~694m
Review
Description
Product features:
1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid, .
2. The liquid temperature: -15ºC to +70ºC, hot water type -15ºC to +120ºC
3. Flow range 0.5m³/h~498m³/h, head range 100m~694m.
4. Model range ASB1,2,3,4,5,8,10,12,15,16,20,32,45,64,90,100,130,160,190,220,260,300,350,400,450
5. Material SS304, SS316L. Duplex 2205
6. The environment temperature: ≤40ºC.
7. The minimum entrance pressure curve: NPSH +0.5m.
8. Head of safety margin of 0.5m.
Data sheet:
Model |
ASB1 |
ASB2 |
ASB3 |
ASB4 |
ASB5 |
ASB8 |
ASB10 |
rated flow. m³/h |
1 |
2 |
3 |
4 |
5 |
8 |
10 |
Max.head. m |
594 |
634 |
508 |
475 |
374 |
558 |
494 |
Model |
ASB12 |
ASB15 |
ASB16 |
ASB20 |
ASB32 |
ASB45 |
ASB64 |
rated flow. m³/h |
12 |
15 |
16 |
20 |
32 |
45 |
64 |
Max.head. m |
628 |
450 |
432 |
436 |
579 |
462 |
326 |
Model |
ASB90 |
ASB100 |
ASB130 |
ASB160 |
ASB190 |
ASB220 |
ASB260 |
rated flow. m³/h |
90 |
100 |
130 |
160 |
190 |
220 |
260 |
Max.head. m |
238 |
268 |
250 |
198 |
267 |
254 |
219 |
Model |
ASB300 |
ASB350 |
ASB400 |
ASB450 |
|||
rated flow. m³/h |
300 |
350 |
400 |
450 |
|||
Max.head. m |
219 |
188 |
255 |
230 |
|||
